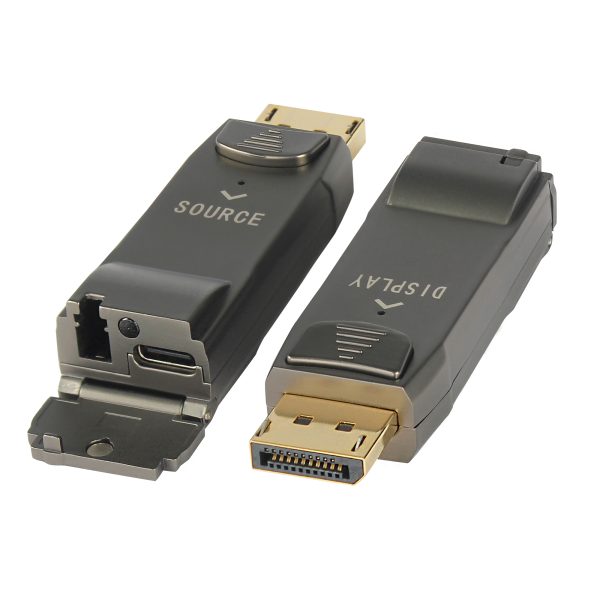

8K@30Hz DisplayPort DP1.4 Fiber Optic Extender, 32.4Gbps Over OM3/OM4 to 300M in Multi-Mode, Supports AUX/HPD/HDCP2.2

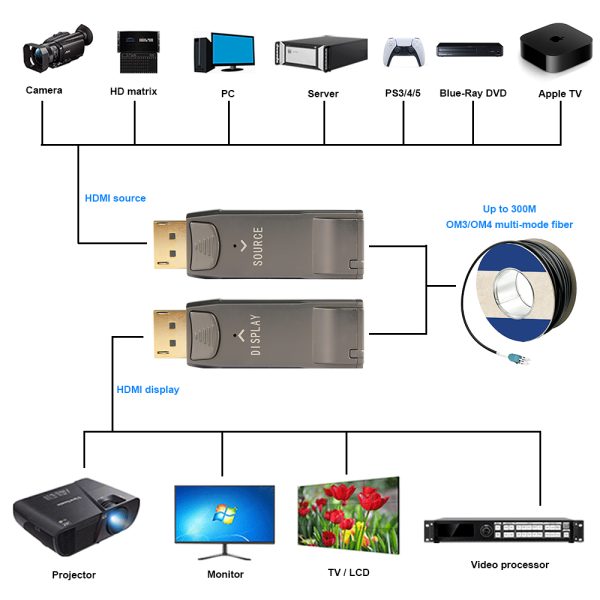

The ZH-THF01DP-T/R DP1.4 Fiber Optic Extender is a high-performance module developed for long-distance DP1.4 audio and video transmission. It supports a data rate of 32.4Gbps (8.1Gbps per channel) and transmits 8K30Hz resolution video and audio over fiber. It is backward compatible with resolutions such as 7680×1080@60Hz, 4K144Hz, 4K60Hz, 4K30Hz, 1080p, and 720p. Featuring a patented micro-diffraction optical system and wavelength division multiplexing (WDM) technology, the extender transmits high-definition video and audio over a single multi-mode LC fiber. The module is easy to assemble, offers stable performance, and is ideal for fast production. It is mainly used for high-definition audio and video data transmission between DP-enabled players, computers, displays, and projectors.

★ Features ★

• Uses wavelength division multiplexing (WDM) to transmit HD audio/video over a single multi-mode LC fiber.
• Built-in patented micro-diffraction optical system ensures high image quality.
• Easy assembly and fast production with strong anti-interference.
• Supports OM3/OM4 fiber up to 300m with lossless transmission.
• TMDS signal transmission over a single multi-mode fiber, offering excellent anti-interference performance.

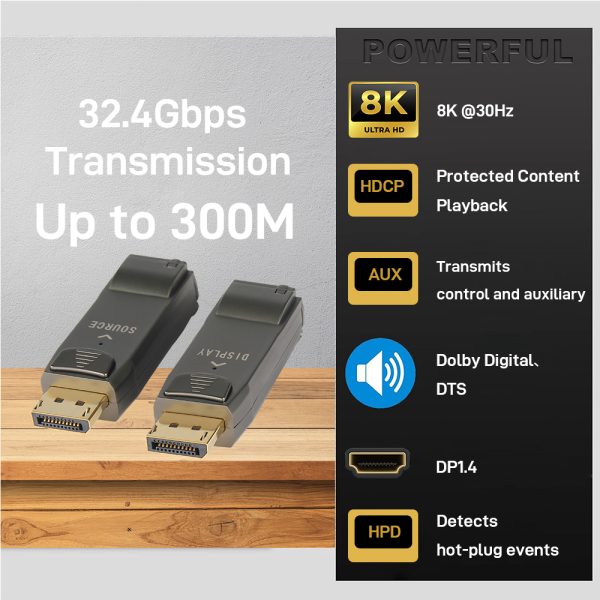

• Supports AUX, HPD, and HDCP2.2 for broad compatibility.

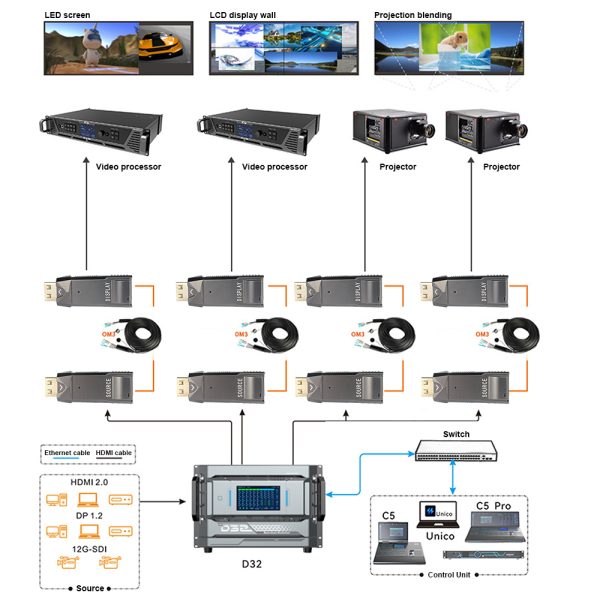

★ Applications ★

• Digital home theater systems
• High-definition video conferencing systems
• Meeting rooms and conference halls
• Auditoriums and outdoor advertising screens

★ Specification ★

• Supported Protocol: DP1.4

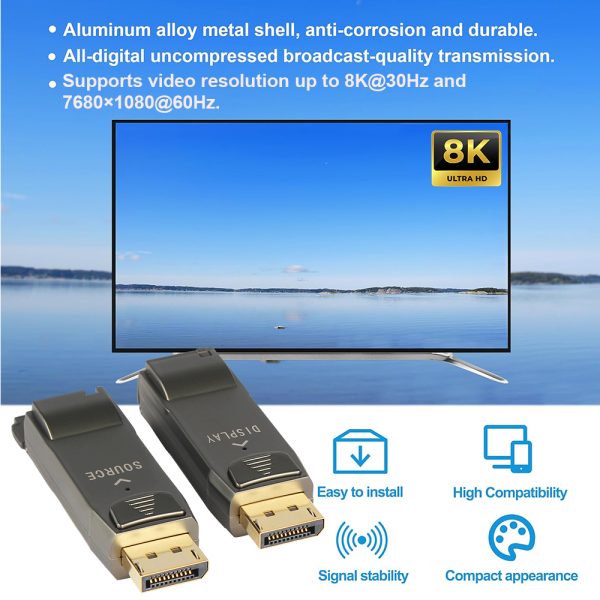

• Resolution: 8K30Hz / 7680×1080@60Hz / 4K144Hz / 4K60Hz / 4K30Hz / 1080p / 1080i / 720p
• Data Rate: 32.4Gbps (8.1Gbps per channel)
• Operating Temperature: 0℃ to 55℃
• Storage Temperature: -40℃ to 85℃
• Power Supply: TX: 5V via TYPE C interface (both TX and RX require power simultaneously)

RX: 5V via TYPE C interface (both TX and RX require power simultaneously)

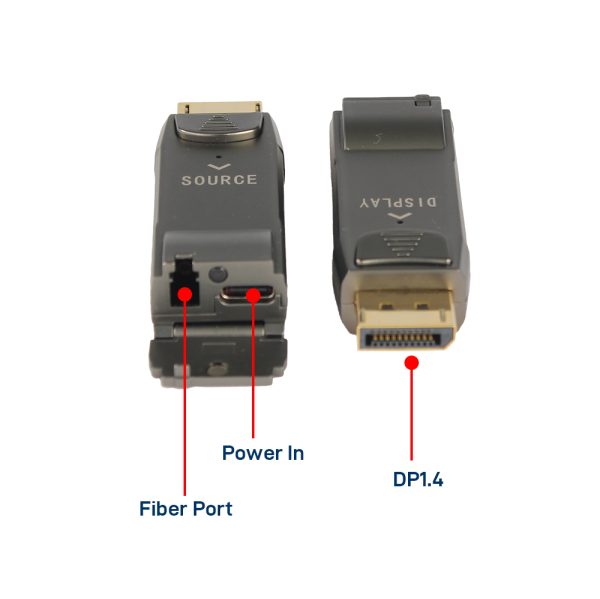

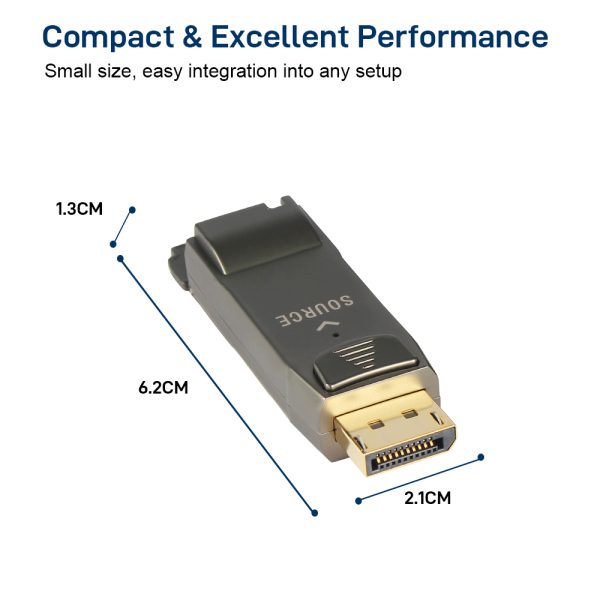

• Connector Type: DisplayPort Full Size Connector
• Maximum Transmission Distance: 300m (using OM3/OM4 fiber; actual distance depends on cable quality)
• Cable Specification: 850nm 50/125μm OM4 LC-LC multi-mode fiber (single fiber)
