For SONY 8Pin RCP Fiber Extender Remote Module for SDI Broadcast Control, LC Single mode, 10KM, Compatible with RCP1000/1500

Product Overview

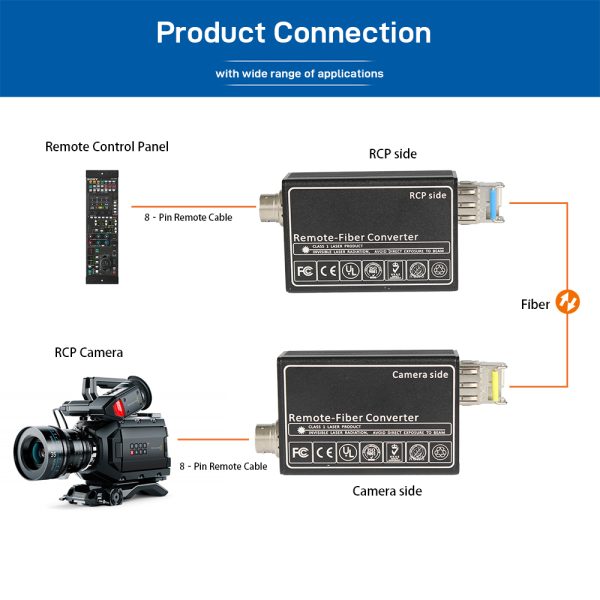

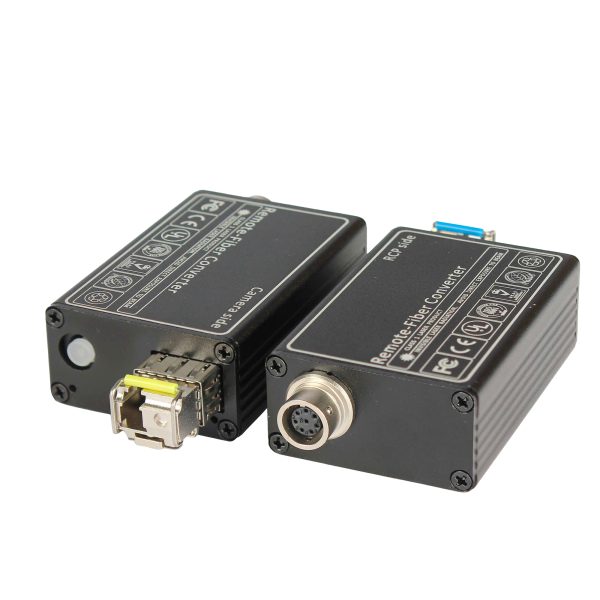

This Mini SONY 8Pin RCP Fiber Extender Module transmits SONY REMOTE control signals over fiber with adaptive data rate for professional broadcast applications. It supports both singlemode and multimode fiber, extending control connections up to 10KM with stable, reliable performance.

Key Features
• 1 channel SONY RCP Remote Control (8Pin) signal fiber transmission, adaptive rate
• Singlemode up to 10KM / Multimode up to 500m fiber distance
• LC optical interface, compatible with 50/125μm, 62.5/125μm multimode and 9/125μm singlemode fiber

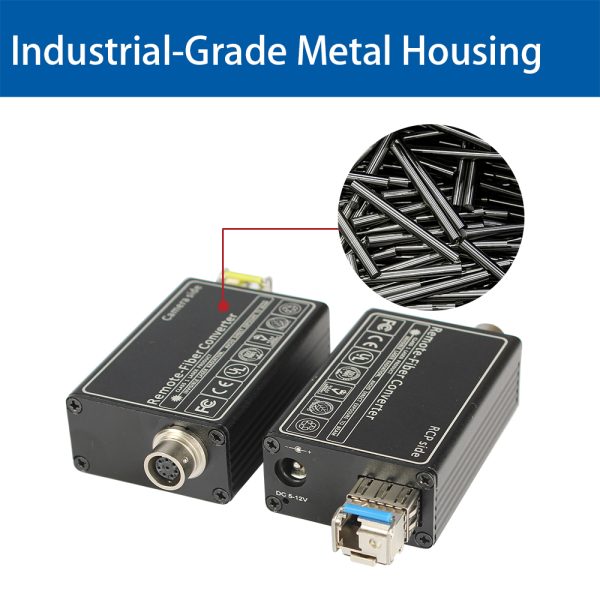

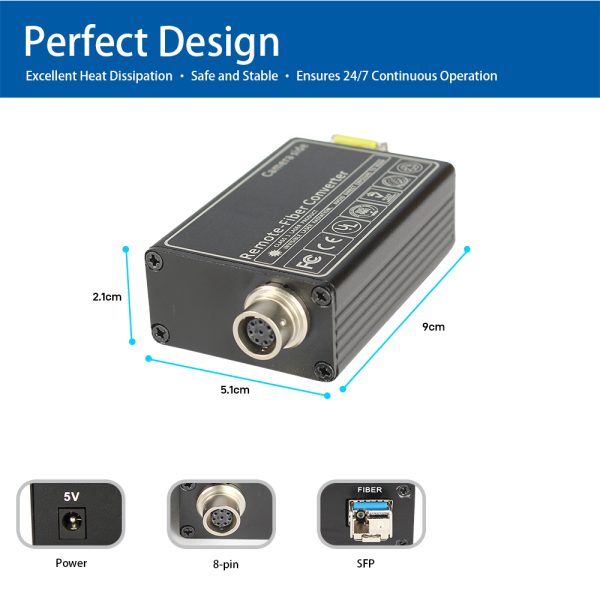

• Miniature, durable aluminum enclosure, easy to install
• Ideal for broadcastgrade SDI systems and remote camera control

Optical Specifications
• Wavelength: 1310nm & 1550nm
• Optical Power: 8 ~ 3 dBm
• Receiver Sensitivity: <-18 dBm
• Transmission Distance: 0500m (multimode) / 10KM (singlemode)

RCP Performance
• Data Format: SONY REMOTE
• Bit Error Rate: < 10⁻⁹
• Physical Interface: SONY 8Pin Female

General Specs
• Power: DC 12V
• Power Consumption: 2W
• Operating Temp: 20°C to 70°C
• Storage Temp: 40°C to 85°C
• Operating Humidity: 095% (noncondensing)

Compatibility & Use Cases
Works with professional Sony RCP control panels such as RCP1000, RCP1500, RCP1501, RCP1530 and broadcast systems that use SONY® 8pin remote protocol for camera/CCU control. Perfect for broadcast studios, live production, field events and longdistance remote camera control over fiber.

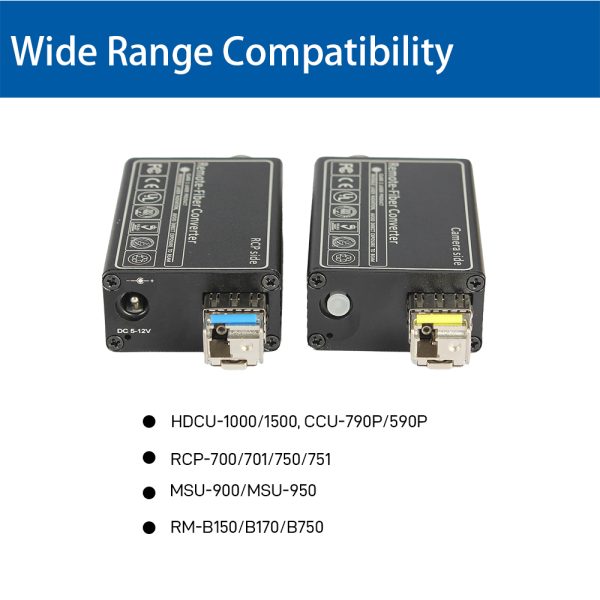

Applicable Models:

1) HDCU-1000/1500 CCU

2) CCU-790P/590P CCU

3) RCP-700/701/750/751 Remote Control Panels

4) MSU-900/MSU-950 Master Setup Unit

5) RM-B150, RM-B170 or RM-B750
