4K@60Hz HDMI 2.0 Fiber Optic Extender, 18Gbps Over OM3/OM4 to 300M in Multi-Mode, HDCP/DDC/CEC Pass-through, Plug & Play

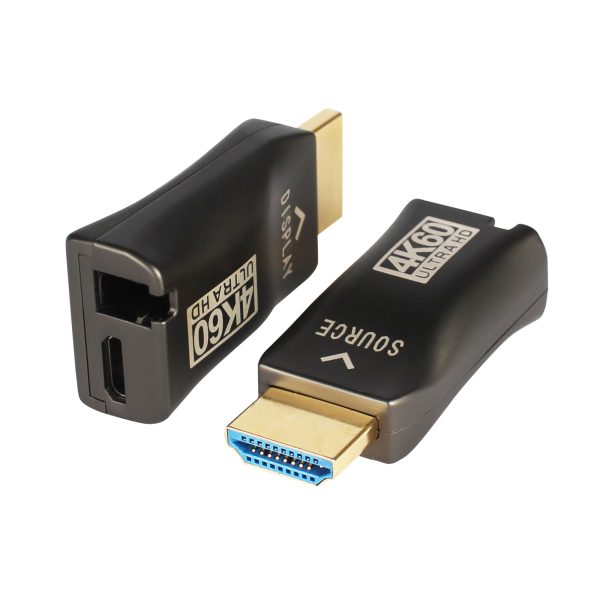

The FQ-1801H-TR HDMI 2.0 Fiber Optic Extender is a high-performance module designed for long-distance HDMI audio and video transmission. It supports 4K@60Hz, downward compatible with 4K@30Hz, 1080p, and 720p.

Featuring a patented micro-diffraction optical system and wavelength division multiplexing (WDM) technology, this extender transmits high-definition audio and video over a single multi-mode LC fiber. It is simple and fast to assemble, stable in performance, and suitable for mass production.

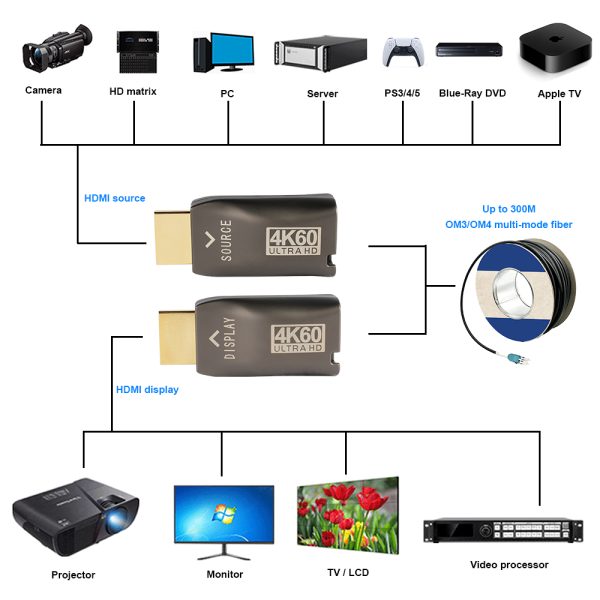

Ideal for connecting HDMI-enabled players or computers to HDMI TVs, monitors, projectors, or other high-definition display devices.

★ Features ★

• Uses wavelength division multiplexing (WDM) to transmit HD audio/video over a single multi-mode LC fiber.
  • Built-in patented micro-diffraction optical system ensures high image quality.
  • Easy assembly and fast production; reliable performance with strong anti-interference.
  • Supports OM3/OM4 multi-mode fiber up to 300m with lossless transmission.
  • TMDS signal transmission over a single multi-mode fiber with excellent anti-interference.
  • Supports HDCP, DDC, and CEC pass-through for broad compatibility.
  • Supports hot-plug operation, convenient for maintenance and deployment.
  • Compact, lightweight, and suitable for mass production and rapid installation.

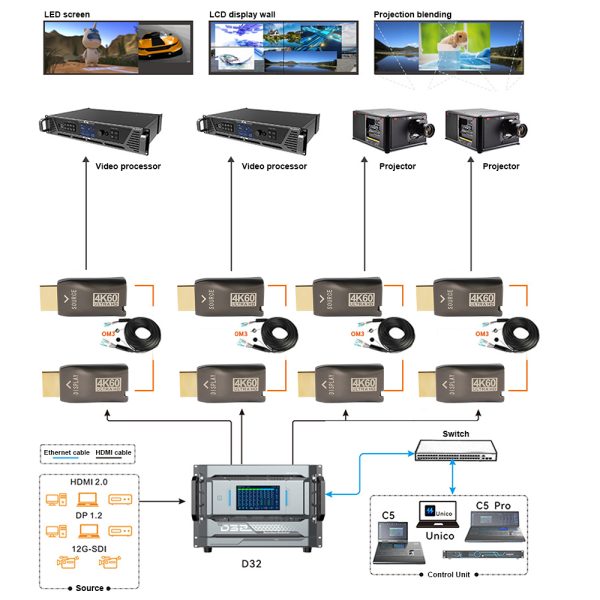

★ Applications ★

• Digital home theater systems
  • High-definition video conferencing systems
  • Meeting rooms and conference halls
  • Auditoriums and outdoor advertising screens
  • Security camera monitoring systems
  • Educational multimedia classrooms
  • Commercial display and exhibition halls
  • Broadcast and TV monitoring systems
  • Industrial automation monitoring
  • Medical imaging and surgical video transmission

★ Specification ★

• Supported Protocol: HDMI 2.0, backward compatible with HDMI 1.4
  • Resolution: 4K@60Hz, 7680×1080@60Hz, 4K@30Hz, 1080p, 1080i, 720p
  • Maximum Transmission Rate: 18Gbps (6Gbps per channel)
  • Operating Temperature: 0℃ ~ 55℃
  • Storage Temperature: -40℃ ~ 85℃
  • Power Supply: TX: 5V DC, RX: 5V DC (both TX & RX require power simultaneously)
  • Maximum Transmission Distance: 300m (OM3/OM4 multi-mode fiber; actual distance depends on cable quality)
  • Cable Specification: 850nm, 50/125μm OM3/OM4 LC_LC multi-mode fiber (single fiber)
  • Signal Transmission: TMDS, HDCP, DDC, CEC pass-through
  • Hot-Plug Support: Yes
  • Dimensions: 6.2cm x 2.1cm x 1.3cm

★ Notes / Remarks ★

Clean fiber connectors and fiber end faces with a fiber cleaning pen before use.

This is a custom module; the length and quality of HDMI adapter cables may affect performance. Verified sample results should be used as reference.

Compliant with ROHS + Halogen-free environmental standards.
